6.8.18 TeX Instructions for Mathematical Formulas

      PROGRAM EXA6_2
      CHARACTER CSTR*80

      CALL SETPAG('DA4P')
      CALL DISINI
      CALL PAGERA
      CALL COMPLX
      CALL HEIGHT(40)

      CSTR='TeX Instructions for Mathematical Formulas'
      NL=NLMESS(CSTR)
      CALL MESSAG(CSTR, (2100 - nl)/2, 100)

      CALL TEXMOD('ON')
      CALL MESSAG('$\frac{1}{x+y}$', 150, 400)
      CALL MESSAG('$\frac{a^2 - b^2}{a+b} = a - b$', 1200, 400)

      CALL MESSAG('$r = \sqrt{x^2 + y^2}', 150, 700)
      CALL MESSAG('$\cos \phi = \frac{x}{\sqrt{x^2 + y^2}}$',
     *            1200, 700)

      CALL MESSAG('$\Gamma(x) = \int_0^\infty e^{-t}t^{x-1}dt$',
     *            150, 1000)
      CALL MESSAG('$\lim_{x \to \infty} (1 + \frac{1}{x})^x = e$',
     *            1200, 1000)

      CALL MESSAG('$\mu = \sum_{i=1}^n x_i p_i$', 150, 1300)
      CALL MESSAG('$\mu = \int_{-\infty}^ \infty x f(x) dx$',
     *            1200, 1300)

      CALL MESSAG('$\overline{x} = \frac{1}{n} \sum_{i=1}^n x_i$',
     *            150, 1600)
      CALL MESSAG('$s^2 = \frac{1}{n-1} \sum_{i=1}^n' //
     *            '(x_i - \overline{x})^2$', 1200, 1600)

      CALL MESSAG('$\sqrt[n]{\frac{x^n - y^n}{1 + u^{2n}}}$',
     *            150, 1900)
      CALL MESSAG('$\sqrt[3]{-q + \sqrt{q^2 + p^3}}$', 1200, 1900)

      CALL MESSAG('$\int \frac{dx}{1+x^2} = \arctan x + C$', 150, 2200)
      CALL MESSAG('$\int \frac{dx}{\sqrt{1+x^2}} = {\rm arsinh} x + C$',
     *            1200, 2200)

      CALL MESSAG('$\overline{P_1P_2} = \sqrt{(x_2-x_1)^2 + '//
     *            '(y_2-y_1)^2}$', 150,2500)
      CALL MESSAG('$x = \frac{x_1 + \lambda x_2}{1 + \lambda}$',
     *            1200, 2500)

      CALL DISFIN
      END

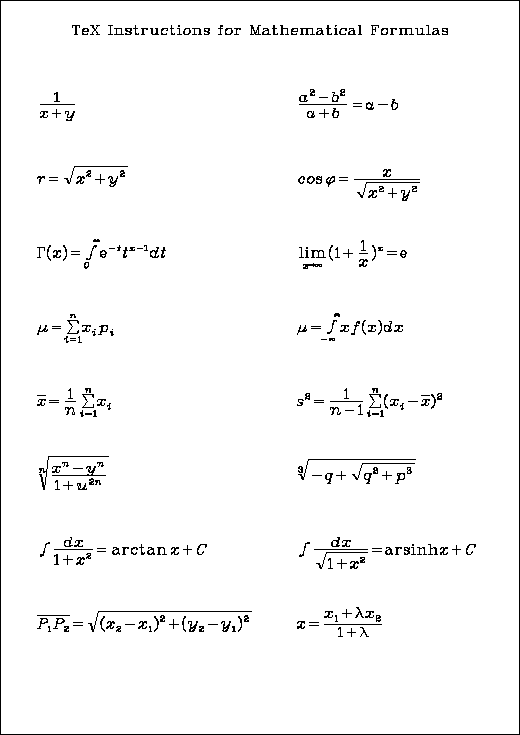

Figure 6.13: TeX Instructions for Mathematical Formulas
